AX 8 KTV audio price

AX  . 8 is a th high performance and high efficiency speaker, its simple configuration facilitates fixedly mounted. The 8" drive unit is equipped with a horn load structure. AX  88 is a perfect choice for language applications, providing excellent clarity and intelligibility.

Project Details

AX 8 is a high-performance and high-efficiency speaker, its simple structure is convenient for fixed installation. The 8" drive unit is equipped with a horn load structure. The AX 88 is a perfect choice for language applications, providing excellent clarity and intelligibility. AX 8 has a high-strength and waterproof structure. It is equipped with a U-shape as standard. Mounting frame and stainless steel surface net.

High-definition broadcasting speaker



characteristic:

•Excellent language intelligibility and clarity

• Broadband segment 8" drive unit, remove 1" compression driver and passive frequency divider

• Lightweight and high strength

• Funktion-One design waterproof driver

• Equipped with stainless steel U-shaped mounting frame and its accessories

•Extend a section of PU speaker cable from the inside for connection

• There are 100V fixed-rate versions available for purchase

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

8"

180Hz-8kHz

108dB

200W

16Ω

*AES standard

Frequency response ±3dB:

180Hz-8kHz

weight:

13.5kg(30lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

Terminals

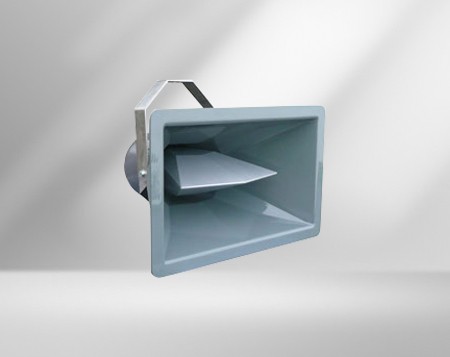

 AX 8(图1)
