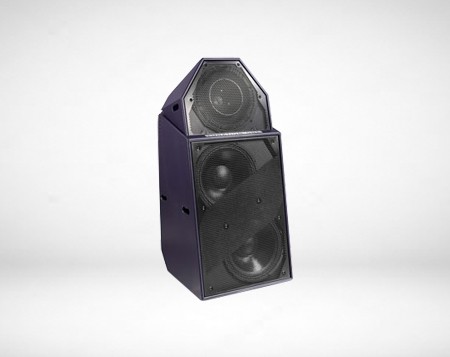

PSM318 DJ monitor Bar audio set Vendor

PSM318 DJ monitor output superior full-range, accurate and direct sound, the DJ monitors have Yi new ultimate standard, PSM318 is composed of two parts, the low-frequency part PSM318L is Yi Ge Shuang 18 "low frequency Reflective design provides very powerful and close-range ultra-low frequency.

Project Details

PSM318 DJ monitors output excellent full-range, accurate and direct sound, which makes DJ monitor speakers have a new ultimate standard. PSM318 is composed of two parts. The low frequency part (PSM318L) is a double 18" with low frequency reflection type. Designed to provide very powerful and close-range ultra-low frequency. The other part is an independent coaxial three-way speaker (PSM318H). The two parts of the cabinet are combined with an exquisite quick-lock fastener, providing a simple The angle of suppression is adjusted to match different DJ positions and DJ heights. The low-frequency cabinet integrates wheels, so that the PSM318 can be easily moved to the most suitable position. The three-way full-frequency part uses an 18" driver, high-frequency The mid-frequency driver is coaxially installed in front of the 18" driver. The mid-frequency part uses a paper plate with a compression driver so that the singing voice will not be ear-splitting, clear, and will not be confused with other music sounds. The low-frequency use one has a very fast response. The 18" neodymium magnet steel 5" voice coil driver provides excellent mid-low frequency. The design of PSM318 is to put the most powerful driver in a set of cabinets, but the cabinet is as small as possible and will not obstruct the line of sight.

This revolutionary DJ monitor has been used in the Space Club of Ibiza, Spain, and has been widely praised. At present, many large pioneer music festivals in the world have adopted this monitor. The Winter Music Conference in Miami, USA also uses PSM318 as a DJ monitor.



characteristic:

• High-power, high-precision point source monitoring

• Divided into two parts: each group has a PSM318H, and a PSM318L

• Quick adjustment of the elevation angle to suit different positions and different DJ heights

• PSM318L integrated wheels, easy to move to a suitable position

• Built-in connection line segment in PSM318L to PSM318H

• PSM318L is equipped with NL8 speaker socket, single speaker cable

• PSM318H can be purchased with a sleeve, installed with a tripod, or hoisting facilities

•The cabinet should be as small as possible without obstructing the line of sight

•Sturdy Gangnet



driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

2×18"

(PSM318L)

30-85Hz

104dB

1600W

2×8Ω

Total resistance 4Ω

18"

85-694Hz

104dB

600W

5"

694-9k5Hz

112dB

80W

Total 8Ω

Tweeter

9k5Hz-above

112dB

18W

*AES standard



 PSM318 DJ monitor(图1)
