Resolution 2 School audio company

Resolution 2 a full horn loaded, surprisingly delicate and compact, full-range speaker, which uses 5 "drive as a low frequency, 8" mid and 1 "high frequency, of Funktion horn load and drive technology One, there is provided a clear, detailed analysis and Strong and powerful voice.

Project Details

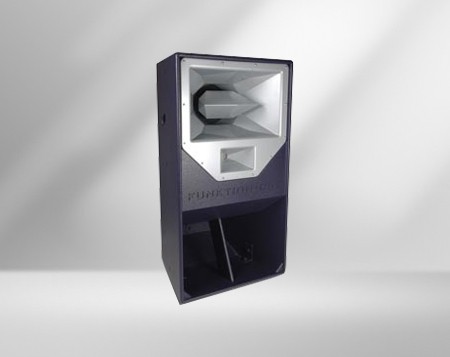

Resolution 2 is a full horn load, surprisingly detailed and compact full-range speaker. It uses 15" drivers for low frequency, 8" mid frequency and 1" high frequency. Funktion-One's horn load and driver technology provides clear, detailed analysis and strong And powerful sound. R2 uniquely combines compactness, high performance and superior sound, so that it can be used in situations where sound quality, volume, and volume are very demanding.

R2 can be used with Funktion-One low frequency speakers, such as Infrabass, BR series, and F series to get better low frequency response. In addition, R2 also has a horizontal version, the model is R2U, suitable for venues with low ceilings, and the volume is slightly larger than R2.




characteristic:

• Full frequency, can be used alone

• Full horn load design aimed at high performance

• Three-way dual power amplifier (mid-to-high frequency with built-in passive crossover)

• Funktion-One design driver

• Comprehensive hanging and hoisting options

•M10 lifting point

• There are wheel plates and gauze surface nets available for purchase

• There are also R2S8, R2SH and R2EH; high/high-medium versions are available for purchase



driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

15"

28-250Hz

102dB

400W

8"

250-6k5Hz

106dB

200W

12Ω

1"

6k5Hz-above

107dB

50W



*AES standard

Frequency response ±3dB:

50Hz-18kHz

weight:

48kg(106lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

2 × Speakon NL4

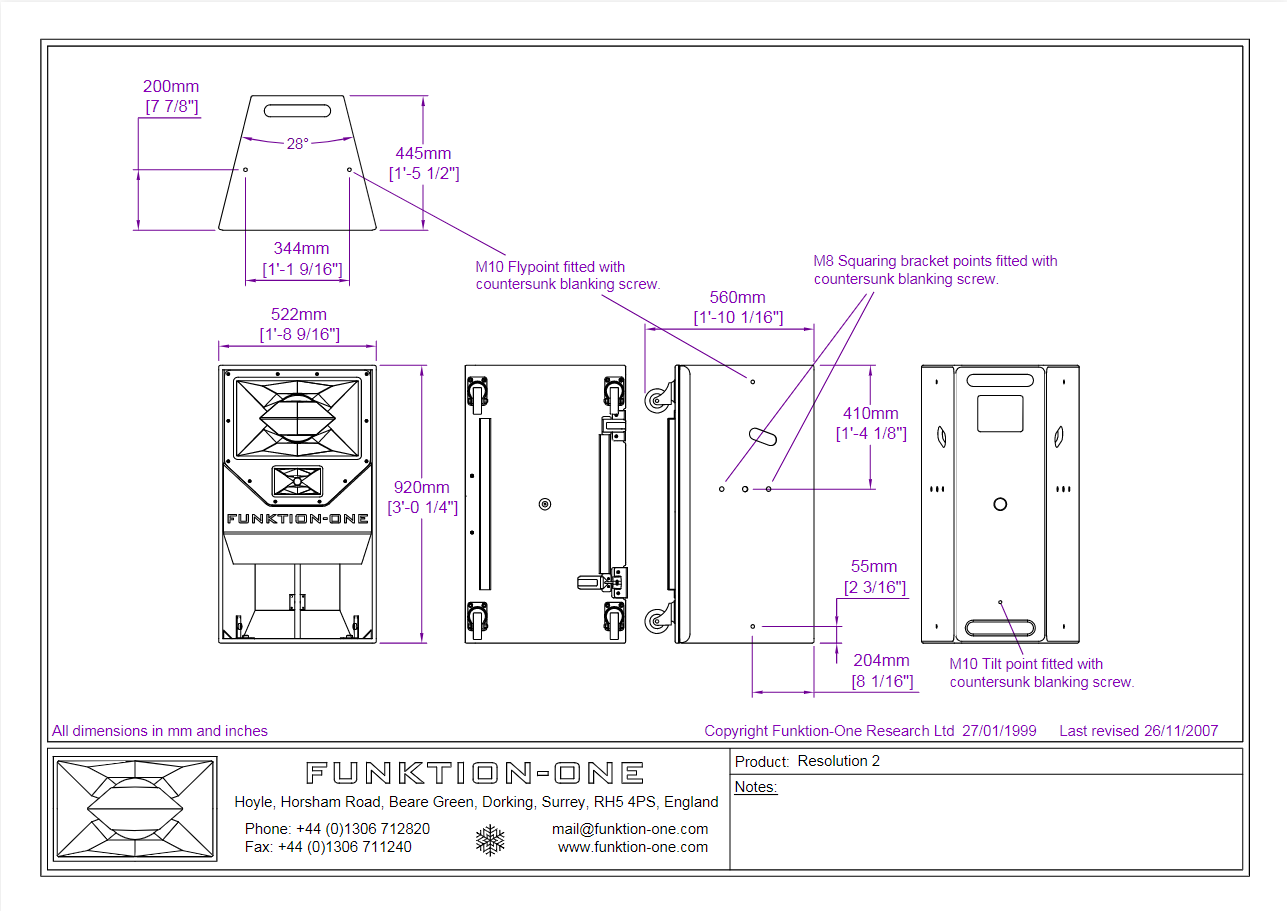

Resolution 2(图1)
