Resolution 1 Bar ktv sound Vendor

Resolution . 1 is th deepening improved two-way speakers of small volume ONY Andrews by 40 years of research and development led to the intermediate tray efficiency, exclusive of Funktion One . 5 "compression driver unit may be removed, avoiding their intrinsic Metallic sound and distortion.

Project Details

Resolution 1 is a deep and improved two-way small speaker. Tony Andrews has developed a high-efficiency paper tray midrange through 40 years of research and development. The proprietary Funktion One 5" unit can remove the compression driver and avoid their inherent metal. Sound and distortion. This driver cooperates with the axe phase plug and waveguide to obtain a fairly smooth frequency response of high and intermediate frequencies, as well as coherence and detailed sound.

The perfect combination between 5" unit and 12" unit, the crossover point is 520Hz. The traditional two-way speaker will select the 1-2khz frequency band when connecting the tweeter compression unit and the 12" or 15" woofer, which causes the sound to be unnatural and easy to cause distortion. Then Resolution 1 solves this problem. The precise projection and delicate sound of R1 make it an ideal choice for high-quality sound reinforcement applications.

The trapezoidal design of the box makes it suitable for use with the optional PX1 external passive crossover. The waveguide type driver can be rotated horizontally or vertically for use.



characteristic:

• Very low distortion rate

• Funktion-One design neodymium magnetic driver

• The horn can be rotated and placed horizontally with the speaker

• There is a 35mm socket at the bottom

• There are nets available for purchase

• There are PX1 passive crossovers available for purchase

• M10 lifting point, there are comprehensive lifting options available for purchase

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

12"

25-520Hz

102dB

350W

8Ω **

5"

520Hz-above

112dB

75W

12Ω **



*AES standard

**The total rated impedance when using passive crossover is 8Ω

Frequency response ±3dB:

65Hz-15kHz

weight:

19kg(42lbs)

Nominal diffusion angle:

40° horizontal × 25° vertical

interface:

2 × Speakon NL4

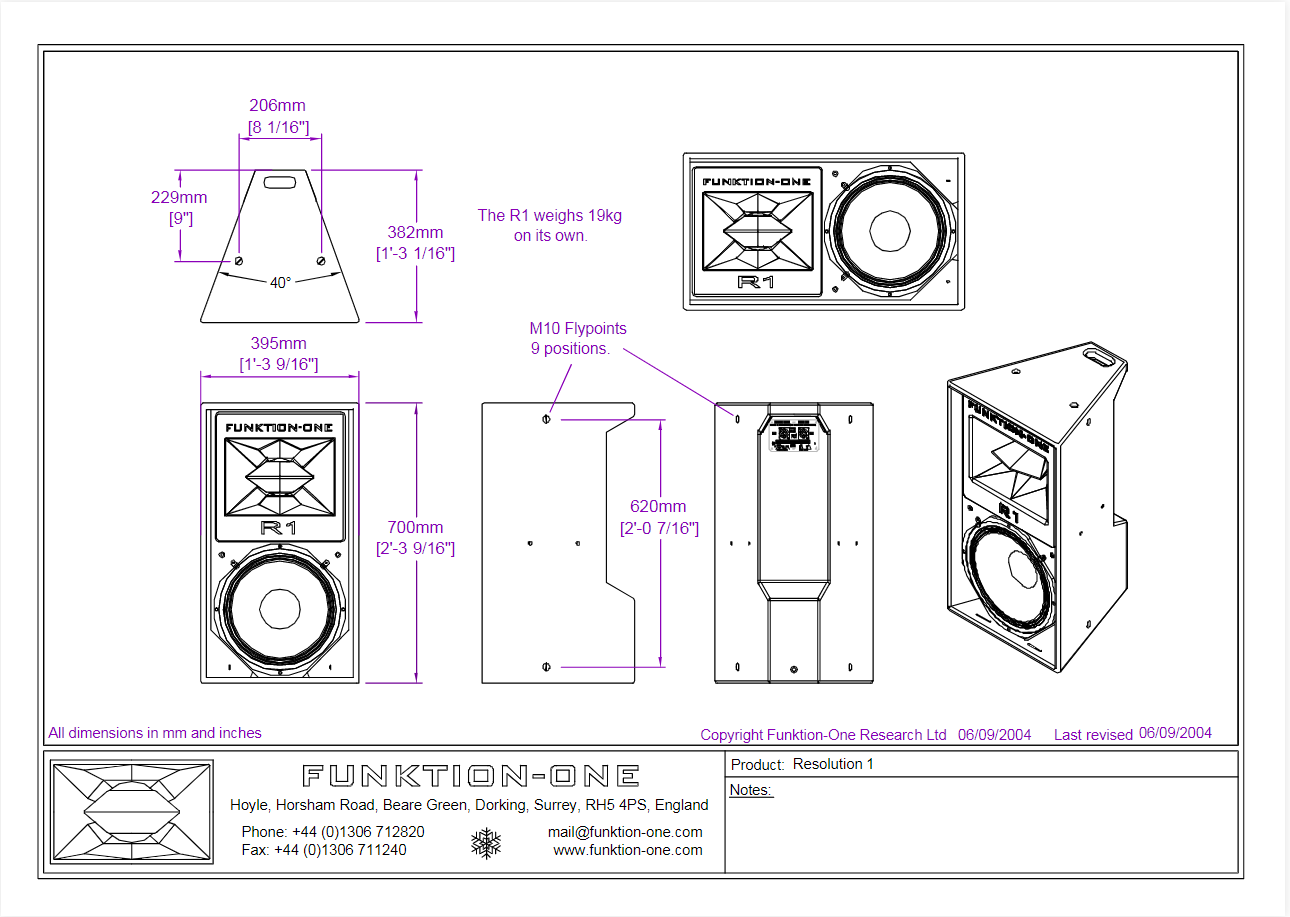

Resolution 1(图1)
