F218 Mk2 Learning audio Vendor

This is Funktion-One famous low-frequency design, it can be used in all the different aspects of a variety of purposes, after years of research and development of technology stepped into the low-load, evolved in the field of professional audio output can be highly striking a solid, high impact, high analysis pure low-frequency and degree of very strong products, but will be relatively small in handling display, only similar products similar to it , but never like it, now Funktion-One will be created and modified F218 F218 Mk2 , it will have to deal with low-load horn It is more refined, and also greatly improves the heat dissipation problem of the driver coil, and improves the technical indicator parameters of the driver.

Project Details

This is Funktion-One's famous low-frequency design, which can be used for all different purposes. After many years of research and development, it has evolved into low-frequency load technology, and has evolved into a highly interesting professional audio field. It can output solid, high impact and high analysis. It is a very powerful product with high frequency and pure low frequency, and it is relatively small and easy to handle and place. Similar products are only similar to it, but never as good as it. Now Funktion-One has improved the F218 to create the F218 Mk2, which handles the low-frequency horn load more Fine, and also greatly improved the heat dissipation problem of the driver coil, and improved the technical indicator parameters of the driver. In a large-scale system, multiple F218 Mk2s are most suitable to be placed in a stack so that the low-frequency effect can be amplified to achieve unexpected and wonderfully heavy low-frequency results.


characteristic:

• Well-tested horn load design, and new adjustments

• Funktion-One design driver

•Integrated handle

• Face mesh options

• Optional part of sinking pulley hole, convenient for stacking during transportation

• Optional neodymium magnet drive version

driver

Frequency band

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

2×18"

25-200Hz

105dB

900W

2×8Ω

Total 4Ω

*AES standard

Frequency response ±3dB:

45Hz-280kHz

Weight (neodymium magnet steel):

(Ceramic magnet):

81.5kg (179lbs)

93kg (204lbs)

structure:

18mm birch compression board

interface:

2×Speakon NL4

(One driver connects to 1+/1-, the other driver connects to 2+/2-)

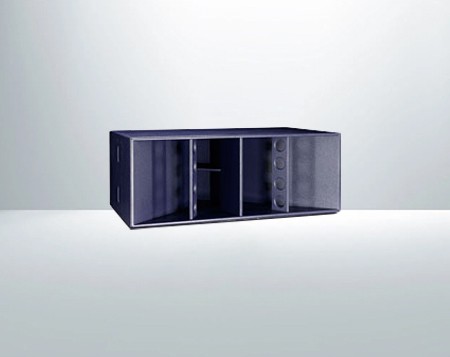

F218 Mk2(图1)
