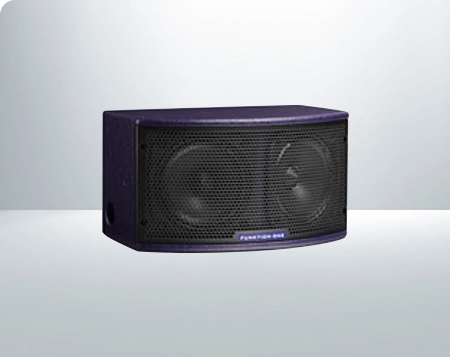

F55 Bar speaker company

F55 is th extremely fine lightweight speaker suitable for a wide projection angle close applications, e.g. KTV rooms, an auxiliary bar-fill, banquet hall theater Downfill front seat, the lower shield box by the audience voice box And home audio speakers, F55's sound has the advantages of high definition, excellent transparency, accurate audio and image positioning, and fine sound. For small speakers, these advantages are very rare.

Project Details

F55 is an extremely detailed and lightweight speaker, suitable for occasions with wide projection angles and close distances, such as KTV rooms, bar auxiliary sound, banquet halls and other theater front seats, the lower level of the auditorium blocked by the box and the sound box and For home audio speakers, the F55's sound has the advantages of high definition, excellent transparency, accurate audio and image positioning, and fine sound. For small speakers, these advantages are very rare. The dual 5-inch drivers manufactured by Funktion-One and carefully designed and tuned cabinets do not require a controller and system equalizer to make this speaker show the purest and natural sound. Like F81, because they are protected, they will not play sounds below the low 1000 working frequency. If you want to increase the low frequency to make the sound more perfect, you can add Funktion-One's small low frequency speakers, such as with MB112 or MB210 LP. .



characteristic:

• Extremely compact small speakers

• Wide and uniform projection angle

• 5" driver is optimized by Funktion-One

•Superior sensitivity

• Uncompressed drive

• Optional Speakon or one-handed engineering connector

• Equipped with M6 nut mounting points

•Toughened steel surface mesh with plastic spray treatment

driver

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal resistance

2 X 5"

95dB

60W



*AES standard

Frequency response ±3dB:

170Hz-16KHz

weight:

3.5kg (7.5lbs)

Nominal diffusion angle:

90° horizontal × 45° vertical

interface:

2xSpeakon NL4 or Phoenix installation connector

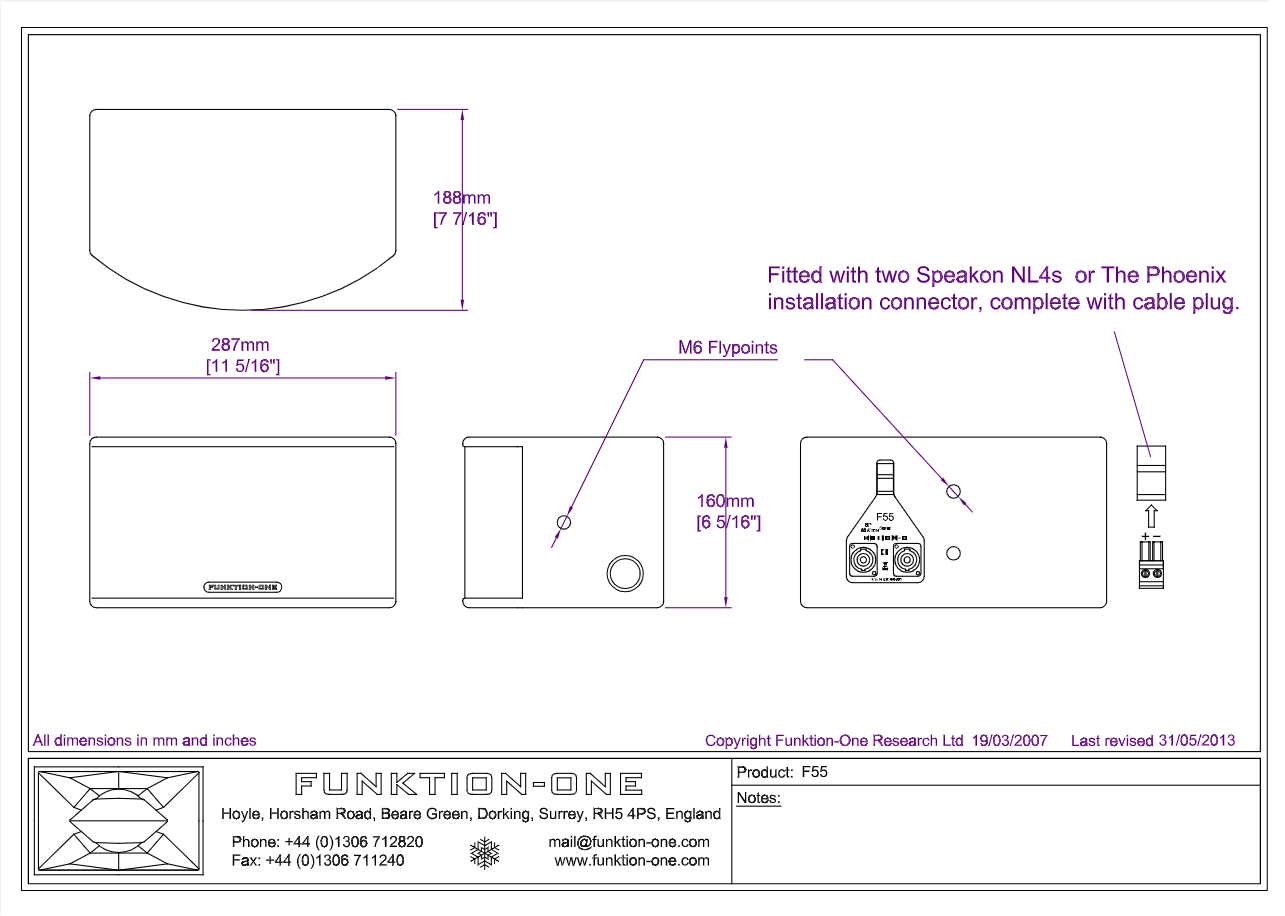

 F55(图1)
