AX 88KTV audio sales

AX 88 is a th in thousands fixedly mounted two passive extremely useful way speaker, 60 [deg.] × 55 [deg.] Angle of projection, which provides a cost-effective, high-quality solutions to give a variety of different application, for example, a stadium, Fixed installation in stadiums or entertainment venues, etc.

Project Details

AX 88 is an extremely useful two-way passive crossover speaker with a fixed installation of 60°×55° projection angle. It provides a cost-effective and high-quality solution for a variety of different applications, such as stadiums and stadiums. Or fixed installation in entertainment venues, etc. Its high efficiency, wide band and low distortion, output particularly clear and highly intelligible speech sound. For the acoustic conditions of ice sports stadiums or other large hard-walled venues, the design diffusion angle of AX 88 can automatically minimize sound reflection.

Join Funktion-One's low-frequency speakers to form a system, such as F118 or F121, and AX 88 can be used as a high-efficiency music playback system.

Cases used include Slovakia, Steel Stadium. The stadium of the Yeswick Football Club, England. And Cielo Club, a famous bar in New York, USA.



characteristic:

•Effectively control the diffusion angle, and the sound is evenly covered

•Using Funktion-One uniquely designed driver

• Including U-shaped mounting frame, suitable for multiple purposes

• There are 100V rated and fireproof versions to choose from

• You can purchase additional options to install multiple AX 88 into an array structure

• There are also waterproof version and AX 88E with outer box version for choice

driver

Frequency band

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

2×8"

180Hz-6k5Hz

108dB

400W

Total impedance 6Ω

1"

6k5Hz-above

106dB

50W




*AES standard

Frequency response ±3dB:

180Hz-18kHz

weight:

27kg (60lbs)

Nominal diffusion angle:

60° horizontal × 55° vertical

interface:

Industry standard terminal blocks

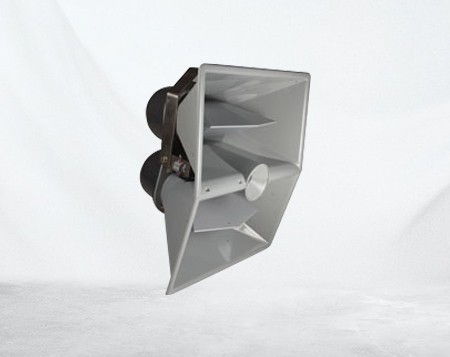

 AX 88(图1)
