EVO 6E KTV audio Merchant

Evolution 6E is high-intensity full-range speaker, in combined loading horn in a compact housing 15 "in the bass, of Funktion iconic. 1 One " IF and 1.4 "compression unit, brings you Leading level of influence and expressiveness.

Project Details

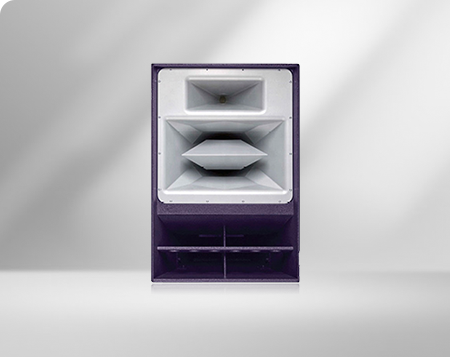

Evolution 6E is a high-intensity full-range speaker that combines 15" mid-bass with a horn, Funktion One's iconic 10" mid-range and 1.4" compression unit in a compact cabinet, bringing you world-leading level Influence and expressiveness. Evo 6E theoretically has a horizontal nominal coverage angle of 50° (actually 40°). When two Evo 6Es are used, the coverage angle can reach 90° smoothly.

The "pure", "powerful" and "natural" EVO series is the latest innovative technology product launched by the British top audio brand Funktion One for the global market. It includes EVO 6E short- and medium-range coverage and EVO 7E long-range applications. It is suitable for theaters. , Concerts, bars and other fixed installation and mobile performance venues that require cutting-edge sound quality. They are all made based on a highly compact cabinet, which pushes the legendary sound quality and extraordinary performance of the world-renowned Funktion One to a higher level, bringing you an absolute world-leading level of sound expression, further interpreting the British Funktion One audio brand "speak for music" pursues the ultimate sound quality concept.

Evo 6E perfectly adapts to all music applications and genres. It is recommended to use F121, F221 or BR221 to match it.



characteristic:

• Efficient full horn loading

• Three-way frequency division

• Funktion One unique drive design

• Lightweight neodymium magnet steel is used as a whole

•M10 hanging point

• Optional protective net

• Optional pulley plate

• Optional Evo 6EH and Evo 6SH mid-to-high version

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

15"

50/80-200Hz

103dB

400W

10"

200-4kHz

108dB

250W

16Ω

1.4"

4kHz-above

109dB

75W

32Ω



*AES standard

Frequency response ±3dB:

55Hz-20kHz

weight:

57kg(126lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

2×Speakon NL8 or EP6



 EVO 6E(图1)
