Resolution 4S Skeletal Bar use audio Vendor

Resolution 4S is a high-efficiency mid-to-high frequency three-way skeleton speaker designed for fixed installation applications. Since there is no outer box or hoisting parts that are not needed for fixed installation, it is more economical and reduces the system cost.

Project Details

Resolution 4S is a high-efficiency mid-to-high frequency three-way skeleton speaker designed for fixed installation applications. Since there is no outer box or hoisting parts that are not needed for fixed installation, it is more economical and reduces the system cost. Resolution 4S provides a consistent and controlled diffusion angle with high-quality sound. It is suitable for a wide range of occasions, such as entertainment venues or theaters that require sound. It also has a high-frequency passive crossover version so that Resolution 4 can use a dual-amplification system to maximize economic benefits. The high and intermediate frequency horn can be rotated 90° so that the speaker can be installed horizontally to cope with insufficient ceiling height.



characteristic:

• Minimize weight design

• There is a horizontal version available for purchase

• Funktion-One design driver

• With hanging points

• Lightweight neodymium magnet drive option

•High frequency passive sub-options

driver

Frequency band

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

12"

114-445Hz

105dB

300W

8"

445-5k77Hz

108dB

200W

16Ω**

1"

5k55Hz-above

109dB

50W

16Ω**



*AES standard

**The total rated impedance when using passive crossover is 12Ω

Frequency response ±3dB:

114Hz-18kHz

weight:

38kg (84lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

Industry standard spring terminal

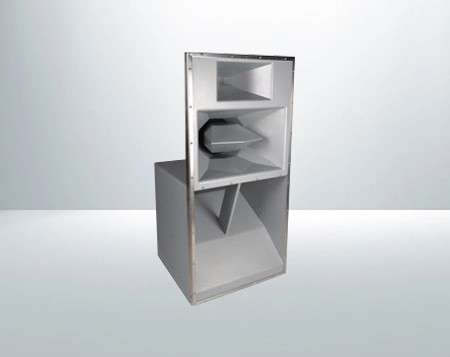

 Resolution 4S Skeletal(图1)
