RM12 Sound bar wholesaler

RM12 is RM series speakers in smaller models, its features and RM15 stage monitor speakers are a kind of, except that it uses a 12 " neodymium magnet LF driver, installed in the new revolutionary design low-load technology (patent pending In the structure, it provides a new low-frequency sound quality of the return speaker, and with the breaking of the traditional high and intermediate frequency 5" paper disk drive, it becomes a stage return speaker with higher efficiency and accurate positioning.

Project Details

RM12 is the smaller model in the RM series speakers. Its characteristics are the same as the RM15 stage return speakers. The difference is that it uses a 12" neodymium magnet low-frequency driver and is installed in a new revolutionary design low-frequency load technology (patent pending ) In the structure, it provides a brand-new low-frequency sound quality of the return speaker, combined with the breaking of the traditional high and intermediate frequency 5" paper disk drive, making it a stage return speaker with higher efficiency and accurate positioning. Other design features are: RM series symmetrical The cabinet allows the RM series speakers to be placed as a left or right return speaker, which is convenient when you need to set the stage return to stereo. In addition, the crossover point of the RM series speakers can be changed to suit different applications. Accurate sound requirements and higher performance make this series of speakers more versatile. Both models of this series of speakers are equipped with pole-mounted sleeves, which can be used as the main speakers of smaller mobile systems.



characteristic:

• Can be changed to a passive crossover network

•Full-range stage return speaker

• Newly developed low frequency load technology (patent pending)

• 5" paper tray high and intermediate frequency driver and axe-shaped waveguide

• Can be used as a left or right return speaker

•Integrate 35mm pole type mounting sleeve (tripod)

• Two-way dual amplifier adjustable crossover point

•Minimum volume and weight, controlled diffusion angle

• Funktion-One design neodymium magnet drive

driver

Frequency band

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

12"

28-721Hz

100dB

300W

8Ω

5"

721Hz-above

112dB

75W

12Ω

*AES standard

Frequency response ±3dB:

65Hz-15kHz

weight:

20kg (45lbs)

Nominal diffusion angle:

25° horizontal × 50° vertical

interface:

2×Speakon NL4

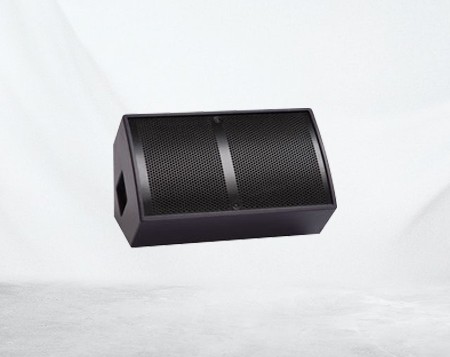

RM12(图1)RM12(图2)
