Minibass 212 Bar bar sound Merchant

Minibass 212 is a One-of Funktion Inf R & lt continued development abass technology, which provides smooth and extends reaching the low frequency, it matches F88 and R1 full-range speaker only.

Project Details

Minibass 212 is the continuation of Funktion-One Infrabass technology. It provides smooth and far-reaching mid- and low-frequency extension. It matches the use of F88 and R1 full-range speakers.

The structure of MB 212 is a 12"16Ω driver designed by two Funktion-Ones and a cabinet designed in the form of a resonance chamber to provide 600w and an average sensitivity of 104dB from 40Hz to 125Hz. This high-performance 8Ω ultra-low frequency speaker can allow one power amplifier channel. Enough for multiple speakers.



characteristic:

•New load-type design

• Funktion-One design dual 12" drives

•Includes stainless steel curved mesh

•Integrated handle

•Integrated lifting point

• There is another version for placing the corner of the wall for selection

driver

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

2×12"

104dB

600W

*AES standard

Frequency response ±3dB:

35Hz-125Hz

weight:

48kg(106lbs)

structure:

15mm birch compression board

interface:

2 × Speakon NL4

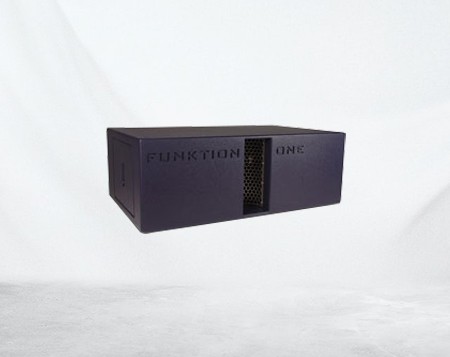

Minibass 212(图1)
