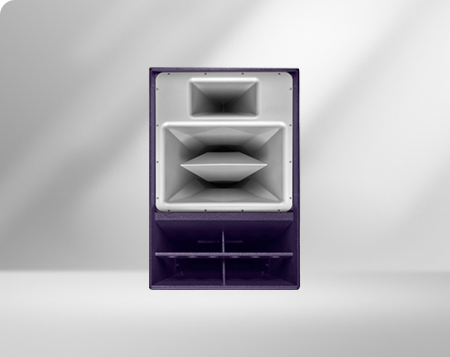

Evolution 7E is a high-intensity full-range speaker , in a combined loading horn in a compact housing 15 "bass, Funkt I ON One iconic 10" IF and 1.4 "compression unit, to bring The world's leading level of influence and expressiveness.
Evolution 7E is a high-intensity full-range speaker that combines 15" mid-bass with a horn, Funktion One's iconic 10" mid-range and 1.4" compression unit in a compact cabinet, bringing you world-leading level Influence and expressive power. Evo 7E theoretically has a horizontal nominal coverage angle of 40° (actually 30°). When three Evo 7Es are used, the coverage angle can reach 100° smoothly.
The "pure", "powerful" and "natural" EVO series is the latest innovative technology product launched by the British top audio brand Funktion One for the global market. It includes EVO 6E short- and medium-range coverage and EVO 7E long-range applications. It is suitable for theaters. , Concerts, bars and other fixed installation and mobile performance venues that require cutting-edge sound quality. They are all made based on a highly compact cabinet, which pushes the legendary sound quality and extraordinary performance of the world-renowned Funktion One to a higher level, bringing you an absolute world-leading level of sound expressiveness, further interpreting the United Kingdom Funktion One's audio brand "speak for music" pursues the ultimate sound quality concept.
Evo 7E is perfectly suitable for live performance and dance applications. It is recommended to use F121, F221 or BR221 to match it.
characteristic:
• Efficient full horn loading
• Three-way frequency division
• Funktion One unique drive design
• Lightweight neodymium magnet steel is used as a whole
•M10 hanging point
• Optional protective net
• Optional pulley plate
• Optional Evo 7EH and Evo 7SH mid- and high-frequency versions
driver | Frequency band | Sensitivity 1w@1m | Recommended power amplifier (rms)* | Nominal impedance |
15" | 50/80-200Hz | 103dB | 400W | 8Ω |
10" | 200-4kHz | 108dB | 250W | 16Ω |
1.4" | 4kHz-above | 109dB | 75W | 32Ω |
*AES standard
Frequency response ±3dB: | 55Hz-20kHz |
weight: | 61kg(134lbs) |
Nominal diffusion angle: | 40° horizontal×20° vertical |
interface: | 2×Speakon NL8 or EP6 |
