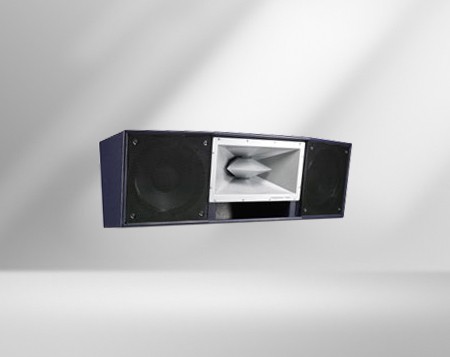

Resolution 1.5TT Marten Audio company

Resolution 1.5TT is a two-way speaker specially designed for medium-sized and low-height ceiling venues. It can be installed close to the ceiling beautifully, and can project the most appropriate coverage angle.

Project Details

Resolution 1.5TT is a two-way speaker specially designed for medium-sized and low-height ceiling venues. It can be installed close to the ceiling beautifully, and can project the most appropriate coverage angle. Using two R1 12" low-frequency drivers and R1.5 5" high-mid frequency drivers, it provides a horizontal 90° projection coverage angle. The unique and excellent solution of Resolution 1.5TT is versatile and hard to count. Resolution 1.5TT has a strong low frequency response, and can also be used with most of Funktion-One's bass series to make the sound more perfect, especially the BR series and F series.



characteristic:

• Equipped with metal parts can be used for wall or ceiling installation

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

2×12"

25-520Hz

103dB

700W

5"

520Hz-above

110dB

75W

12Ω

*AES standard

Frequency response ±3dB:

55Hz-15kHz

weight:

29kg(64lbs)

Nominal diffusion angle:

90° horizontal × 25° vertical

interface:

2 × Speakon NL4

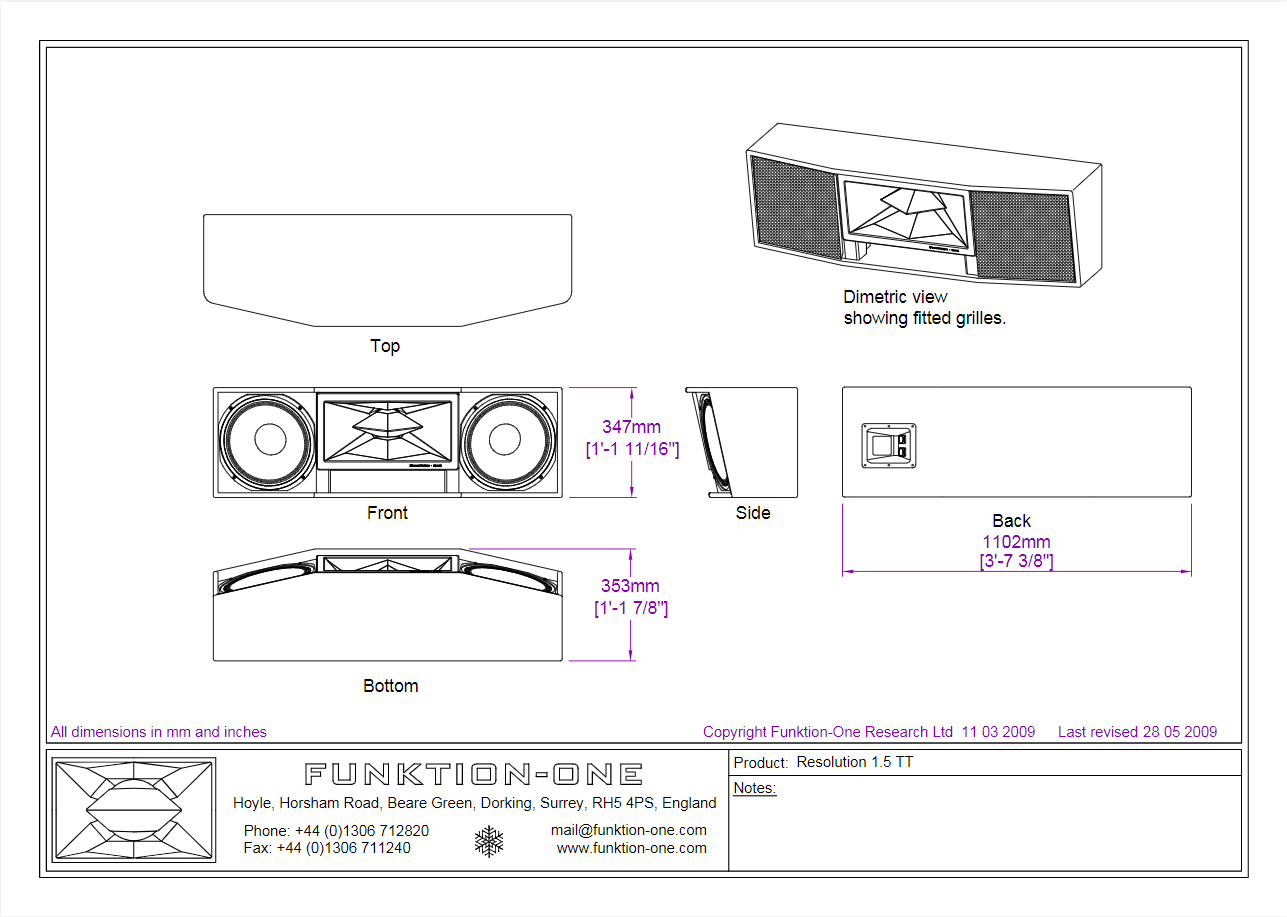

Resolution 1.5TT(图1)
