Resolution 4T Touring Bar use sound Vendor

Resolution 4 T Touring is a three-way low-mid - high speaker, which is perfectly suitable for performances in medium-sized venues. It is most commonly used in occasions where the horizontal diffusion angle of the speaker groups on both sides is 80° to 90° .

Project Details

Resolution 4T Touring is a three-way low-mid-high speaker, which is perfectly suitable for performances in medium-sized venues. It is most commonly used in occasions where the horizontal diffusion angle of the speaker groups on both sides is 80° to 90°. It can also be used as a delay speaker in the R5T system or close-up sound in large-scale performances. The size of R4T is the same as R5T and R18, so it can be installed together with R5T suspension system to make the system easier to install and adjust the angle. The revolutionary suspension system is integrated and hidden in each speaker separately. , There will be no loss of hinges, connectors, bolts or tools, etc. In addition, this system can also be safely set up as a stack speaker system placed on the stage floor. R4T, a powerful speaker, is designed for four-way crossover system, three-way low-mid-high part, and it can be used with low-frequency speakers such as F218, F121, and F221.

If you don't need a suspension system, you can choose the simple version R4E for fixed installation.



characteristic:

• Full horn load type, high-efficiency speaker

• Funktion-One design neodymium magnet drive

•Integrated built-in box hoisting system

• Built-in a piece of speaker cable, hidden in a small hole behind the speaker when not in use

• Same size as Resolution 5 and 18

•A wheel version is available for purchase

• There are gray or black cloth mesh options

driver

Frequency band

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

12"

114-445Hz

105dB

300W

8Ω

8"

445-5k77Hz

108dB

200W

16Ω

1"

5k55Hz

109dB

50W

16Ω



*AES standard

Frequency response ±3dB:

114Hz-18kHz

weight:

46kg (101lbs)

Nominal diffusion angle:

50° horizontal × 25° vertical

interface:

EP6 female socket and an EP6 male plug audio lead

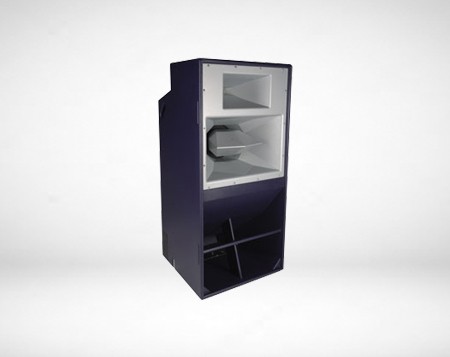

 Resolution 4T Touring(图1)
