There are various high-tech equipment in the 21st century. When it comes to audio, I think everyone will not feel unfamiliar. This is a very common equipment, widely used in some large entertainment venues, etc., so like Finland What are the characteristics and advantages of such a good audio system as AURA AUDIO? Regarding this issue, I will give you a simple analysis today. Let’s share it together.
A3

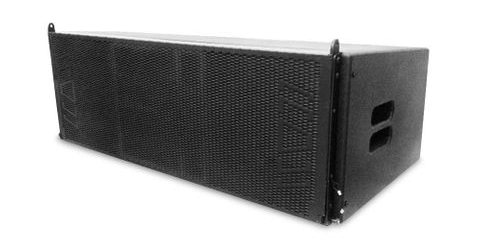

A3 is a large three-way line array speaker. It consists of two 15" low-frequency drivers, two 6.5" tapered drivers loaded with multipath waveguides, and four 0.65" exit compression drivers loaded with dual-port waveguides.
The core of A3, just like its predecessor, A1, is a 6.5" neodymium magnetic cone driver composed of M6 mid-frequency drivers loaded with international patented multipath waveguides. This technology not only improves the sensitivity by 10 decibels, but the M6 channel also eliminates harmonics, so The distortion level when the maximum sound pressure level exceeds 10 decibels is lower than that of ordinary direct radiators. M6 also has a wide horizontal beam width and a high cut-off frequency of 4kHz, so a small diaphragm light compression driver can be used to improve sensitivity and detail. Aura Audio The combination of D80DSP or D100DSP power supply controller and D80 or D100 non-processing amplifier can drive up to twelve A3s.
application:
Large-scale mobile performance
High-quality large bar
Large and medium-sized fixed installation
Specification:
Frequency response (+-3 dB): 60 – 22000 Hz
Horizontal coverage (-6 dB): 90 degrees
Vertical coverage (-6 dB): 7 degrees
Maximum peak sound pressure: 144 dB (free space)
Sensitivity LF, 1w/1m: 99 dB (free space)
Sensitivity HF, 1w/1m: 113 dB (free space)
Crossover point: 400Hz active, 3.5kHz passive
Power handling LF: 1000 W rms, 4000 W peak
Power handling HF: 300 W rms, 1200 W peak
Recommended high voltage filter: 45-60Hz, 12dB/oct
Unit composition:
Woofer: (2) × 15" cone screwdriver
midrange unit: (2) × 6.5" neodymium magnetic cone driver, speaker loading
tweeter: (4) × 0.65” outlet compression driver, dual outlet waveguide
Cabinet:
Cabinet: birch plywood, black textured paint finish
grille: cold rolled steel grille, black textured paint surface
Connector: (2)×NL4, +/-1: LF, +/-2: HF
Size: 1250 mm × 420 mm × 555 mm
Weight: 57 kg
Shenzhen Mateng Audio Technology Co., Ltd. is the general entertainment agent of Finland AURA AUDIO. It is a professional engineering company engaged in audio design, construction and debugging. The company is located in Longgang, Shenzhen. It has a complete management system and integrated sales enterprise.
