EVO 7TL-215 Sound bar Factory

EV O 7TL-215 has two EV O 7T horn-loaded 15-inch units, which provide mid-bass enhancement for the EVO series configuration of hanging and stacking .

Project Details

EVO 7TL-215 has two EVO 7T horn-loaded 15-inch units, which provide mid-bass enhancement for the EVO series configuration of hanging and stacking. The addition of EVO 7TL-215 and EVO 7TH to the EVO 7T series means that the scalability of the EVO series has been greatly improved.

EVO 7TH and EVO 7TL-215 are the expansion of the EVO series, which means that the EVO series can deliver accurate sound very comfortably, and has a coverage that can cover 10,000 listeners.



characteristic:

• Full horn loading designed for high performance

• Advanced speaker design

•Integrate hanging and stacking system

•Using low-weight neodymium magnets as a whole

• Optional skateboard

• Optional iron mesh cover

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

2×15"

65-300Hz

105dB

800W

2×8Ω

4Ω Total

*AES standard

Frequency response ±3dB:

65-300Hz

weight:

49kg(108lbs)

Connector:

2 × Speakon NL4 / NL8

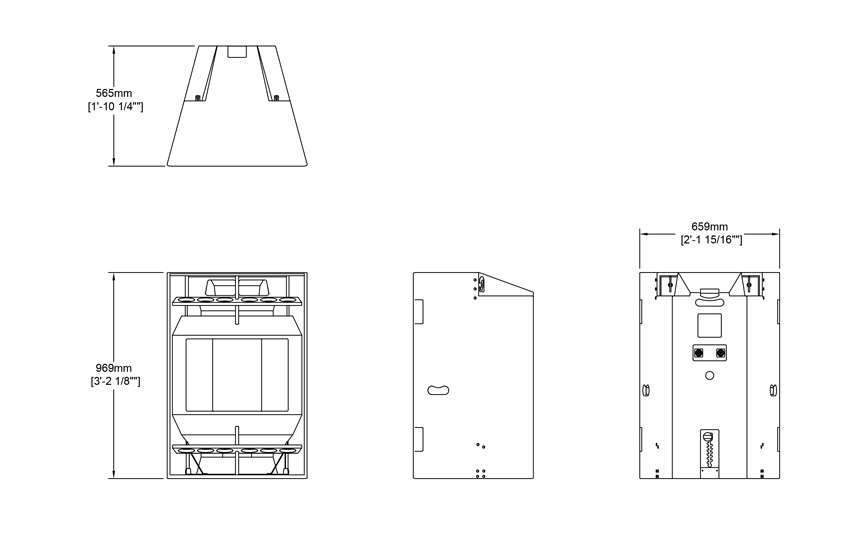

EVO 7TL-215(图1)
