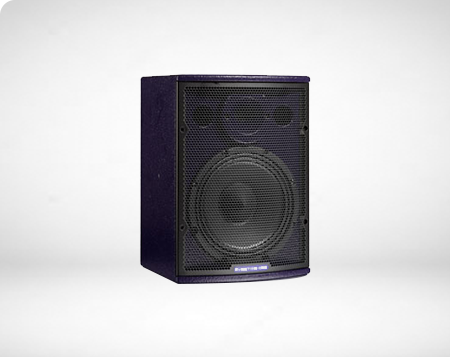

F81 Bar speaker company

F81 Lightweight both meticulous Funktion One unique quality of speakers, and F101 kind, it also has superior resolution and clarity of sound

Project Details

F81 is a meticulous and lightweight speaker with Funktion-One's unique sound quality. Like F101, it also has excellent sound resolution and clarity. It is ideally suited for use in smaller venues and large venues such as theater supplementary sound boxes, home audio and AV system speakers, which can release Funktion-One's fine, clear and excellent sound: If you want to increase the low frequency to make the sound more Perfect; it can be added to the Funktion-One small bass speaker, for example, it can be used with MB112 or MB112A.



characteristic:

•The cabinet is meticulous and lightweight, with high output

• Wide projection angle

• Funktion-one design is most suitable for 8" and 1" drives

•High sensitivity

•Higher passive crossover point, so that the tweeter achieves low distortion effect

• Optional Speakon or one-handed engineering connector

•Toughened steel surface mesh with plastic spray treatment

• Use M6 hanging point

driver

Sensitivity

(1w@1m)

Recommended power amplifier

(rms)*

Nominal impedance

8"

1"

98dB

100W



*AES standard

Frequency response ±3dB:

95Hz-19kHz

weight:

5kg (11.5lbs)

Nominal diffusion angle:

90° cone

interface:

2×Speakon NL4 or Phoenix connector

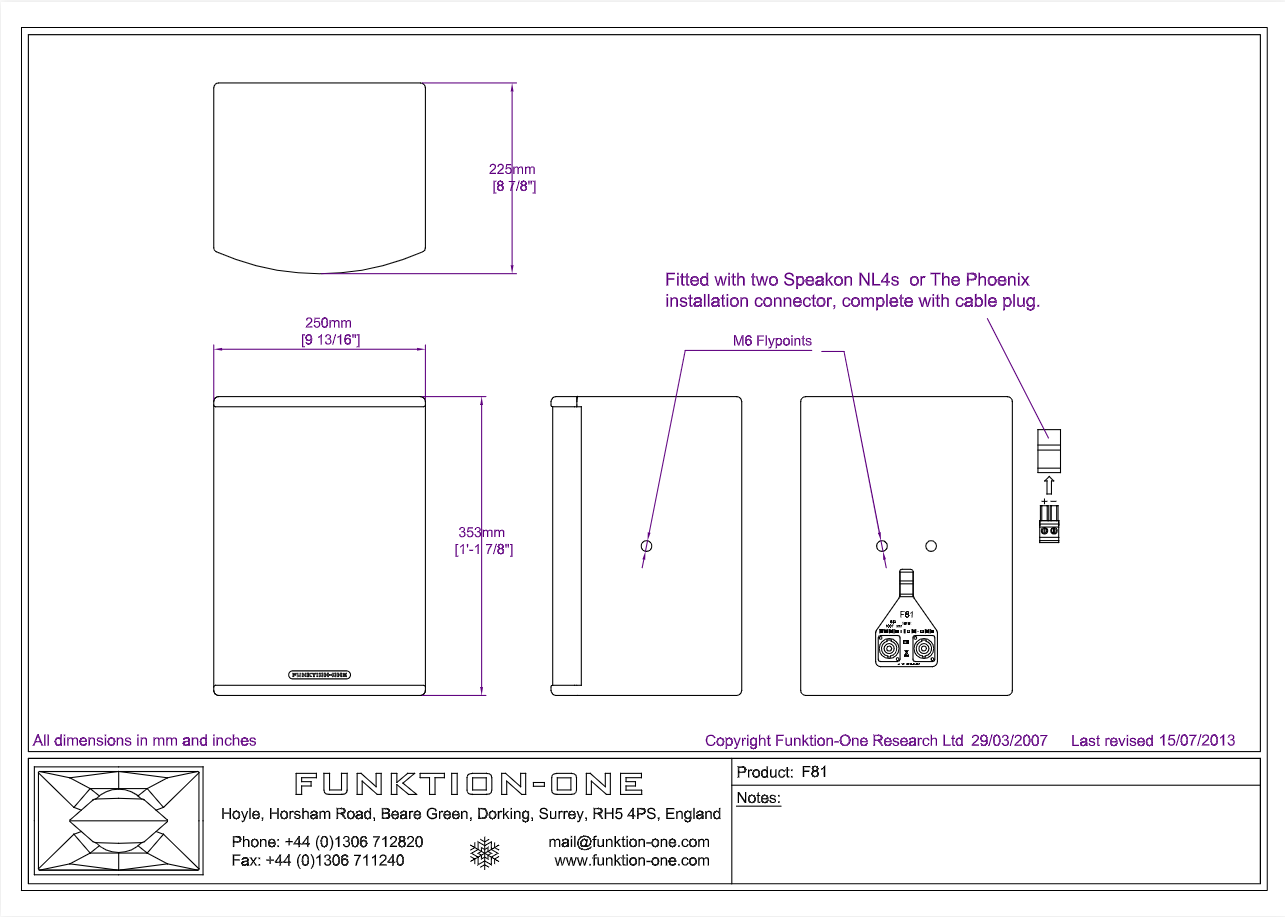

F81(图1)
