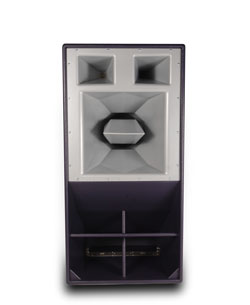

FUNKTION ONE---Resolution 5T
Resolution 5T is a very high-efficiency, three-way, narrow diffusion angle, long-distance projection, high/medium/low frequency three-way point sound source flow system speaker. Incredibly high efficiency and controlled throw angle also boosts the high frequency output of the 8" midrange driver. This means that the crossover point can be raised to 6kHz by a dramatic amount compared to conventionally used compression drivers. Reduce distortion. Its highly controlled diffusion angle and focused projection, - by simply setting up the loudspeaker array can be very accurate and simple to arrange the coverage of the entire venue. Eliminate unwanted reflections, - preserve the high definition of the loudspeaker The system is very flexible for different applications, and can handle from 500 people to large music festivals. Resoluti0n 5T has built-in the hardware of the lifting system of the Revolutionary Army to reduce the weight and appearance as much as possible. The model is as small as possible, it can be installed with high efficiency, and it is easy to install by hanging or stacking. The R5T system is very economical and can effectively reduce the production budget and cargo space. In a word, R5T provides accurate and high Disturbed sound, suitable for all types of music.

Features:
1. Seamless spot surge array system speakers
2. Full size and simple load design, high-efficiency speakers
3. Eunkt ign-One design neodymium magnet driver
4. Built-in box hoisting system
5. A built-in speaker cable is hidden in a small hole behind the speaker when not in use
6. Same size as Resolution 4 and 18
7. The standard configuration is optional wheel board, gray or black cloth net
①Driver: 12", frequency band: 114-445Hz,
Sensitivity (1w@1m): 105d8, recommended amplifier power (rms)*: 300W,
Nominal impedance: 8Ω
②Driver: 8", frequency band: 445-7k55Hz
Sensitivity (1w@
1m): 111d8, recommended amplifier power (rms)*: 200W,
Nominal impedance: 16Ω
③Driver: 1", frequency band: above 5k77Hz
Sensitivity (1w@1m): 113d8, recommended amplifier power (rms)*: 100W,
Nominal impedance: 16Ω
Frequency response ±3dB: 114Hz-18kHz
Weight: 49kg (108lbs)
Nominal diffusion angle: 25°horizontal×20°vertical
Interface: EP6 female socket and an EP6 male plug speaker lead
The products of Shenzhen Mateng Audio Technology Co., Ltd. can provide stable power for the system, and are especially good at driving mid-low frequency and low-frequency speakers. The Vero system achieves a higher level in terms of sound detail, clarity, dynamics, SPL and fullness. The whole system has a more abundant peak reserve.
