Party bar audio recommendation Finland AURA AUDIO China entertainment general agent Mateng Audio Company
The excellence of a speaker is not only reflected in the sound quality, but also in the appearance design. This AURA AUDIO from Finland allows the author to feel a unified visual and auditory aesthetics. This design maintains the classical aesthetics and the sound Speakers that can highlight the active texture of modern music are really rare. Whether it is treble, midrange or bass, it is necessary to not only have the due details, but also maintain the overall unity and integrity at all times, so as to truly achieve the purpose of the sound system to restore music correctly.
A2

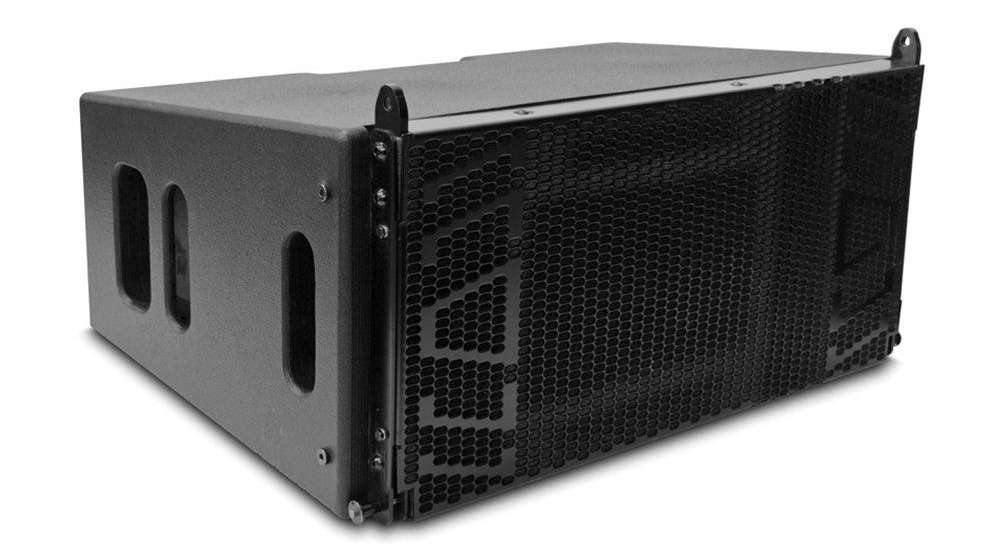

A2 is a compact passive 3-line array speaker. It includes two 10" low frequency drivers, a 6.5" tapered driver loaded with multipath waveguides and two 0.65" exit compression drivers loaded with dual exit waveguides. Two 10" low frequency drivers are equipped with narrow Q bandpass horns for extra sensitivity, It is actually equivalent to two front-loaded 12" drivers with SPL exceeding 150-400 Hz. By adjusting the combined volume after adjustment, the low frequency response is extended to 65 Hz.
The core of A2, just like its predecessor A1, is a 6.5" neodymium magnetic cone driver composed of M6 mid-frequency driver loaded with international patented multipath waveguides. This technology not only improves the sensitivity by 10 decibels, but the M6 channel also eliminates harmonics, so When the maximum sound pressure level exceeds 10 decibels, the distortion level is lower than that of ordinary direct radiators. M6 also has a wide horizontal beam width and a high cut-off frequency of 4 kHz, so a small diaphragm light compression driver can be used to improve sensitivity and detail. Aura The Audio D80DSP or D100DSP-powered controller can drive up to twelve (4 groups × 3) A2s.
application:
Large and medium-sized mobile performances
high quality bar
Large and medium-sized fixed installation
Specification:
Frequency response (+-3 dB): 65 – 22000 Hz
Horizontal coverage (-6 dB): 90 degrees
Vertical coverage (-6 dB): 10 degrees
Maximum peak sound pressure: 137 dB (free space)
Sensitivity, 1w/1m: 107 dB (free space)
Crossover point: 400 Hz and 3.5 kHz 3-way passive
Power handling: 600 W rms, 2400 W peak
Recommended high voltage filter: 65 – 80 Hz, 12 dB/oct
Unit composition:
Woofer: (2)×10” cone driver, loaded with band-pass speaker
midrange unit: (1) × 6.5" neodymium magnetic cone driver, speaker loading
tweeter: (2) × 0.65” outlet compression driver, three outlet waveguide
Cabinet:
Cabinet: birch plywood, black textured paint finish
grille: cold rolled steel grille, black textured paint surface
Connector: (2)×NL4, +/-1: input/output, +/-2: connection
size: 700 mm × 310 mm × 460 mm
Weight: 33 kg
