Project Details

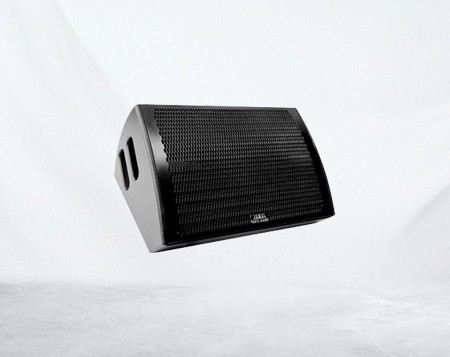

C12 is a compact passive two-way low-weight and thin stage wedge speaker enclosure. It consists of a coaxial 12"+1" neodymium driver and a separate high frequency part of the speaker.

Compared to the more direct C15, 80 x 60 degree dispersion performers will be able to move more on the stage. C12 has internal passive crossover, phase alignment and equalizer network. With the coaxial driver, this ensures seamless and phase-coherent conversion between the low and high frequency bands.

As a multi-functional shell, C12 has a CNC machined handle with a 35 mm bracket adapter and optional M8 rigging points inside the handle .

Features :

l   12" high power coaxial driver

l   30 degree low profile shell

l   80 ×  60 degree high frequency waveguide

l   Fiber-grade reinforced birch plywood shell

l   35 mm bracket adapter

l   Optional M8 rigging point option

l   Textured semi-matte black paint finish

Application :

l   High sound pressure level monitoring

l   Medium-sized mobile performances

l   Voice enhancement

Specification :

l   Frequency response ( -6 dB ) : 85 Hz-20 kHz

l   Horizontal coverage ( -6 dB ) : 80 degrees

l   Vertical coverage ( -6 dB ) : 60 degrees

l   Maximum sound pressure: 126/132 dB (free space)

l   Sensitivity, 1w/1m: 99 dB (free space)

l   Impedance: 8 ohm

l   dividing point : 1.8 kHz passive

l   Power handling: 500 W cont, 2000 W peak

l   Recommended high voltage filter: 65 Hz, 24 dB/octave

Unit composition :

l   Woofer: ( 1 ) ×  12" neodymium magnetic cone driver, reflection tuning

l   tweeter unit :( . 1 ) ×  . 1 "compression driver, coaxial with separate waveguide tube

Cabinet :

l   Cabinet : curved birch plywood, black textured paint finish

l   Grille: cold rolled steel grille , black textured paint surface

l   Connector: ( 2 ) ×  NL4, +/-1: input, +/-2: link

l   Dimensions: 585 mm ×  430 mm ×  295 mm

l   Weight: 15 kg
