Funktion - One's brand new Bass Reflex; low-frequency reflex series speakers are designed to be used in indoor entertainment places such as nightclubs, bars, etc. that require low-pitched power, or for high-quality, high-performance low-frequency feedback. The unique design and adjustment make the speaker relatively thinner and more analytical than other similar products. The high resolution means that the speaker can be used at a higher crossover point, that is to say, it is more widely used, and it provides frequency adjustability to cooperate with the low-frequency extension of Funktion-One's various full-range speakers.
BR121/ BR 221 - can provide deep subwoofer, very suitable for F215M KII, R 2, R 3 and other speakers.
Br218 - Multi-purpose subwoofer, in addition to being used as a subwoofer, it can also be used as a high-end subwoofer.
Br11 8 - Compact A near-field low-frequency speaker with a relatively small cabinet, which is very suitable for FBB, F1201, R1 and other speakers.
Br115 - A low-frequency loudspeaker with high performance in a relatively small box. It is very suitable for F8 1, F101, R 1 and other loudspeakers. It is ideal for smaller applications such as recording and feedback.

characteristic:
1. Extremely strengthened and solid cabinet, providing clear low frequency
2. Wear-resistant powder-coated steel surface outline
3.—Integrated handle
4. Optional M20 th"ead ed pole mount
5. Pulley option (only available for BR 221 and BR 218)
6. Relatively small size, easy to manage (BR11 8 and BR11 5)
7. All are made of 18mm Baltic multi-layer compression board
8.2x Speakon NL4 sockets, ( BR 221 and BR21 8 sockets,
9.1 +/- and 2 + each connected to a drive)

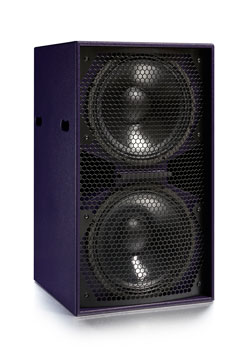

①Model: BR221 Driver: 2×21", frequency band: 30-270Hz,
Sensitivity (1w@1m): 104d8, recommended amplifier power (rms)*: 1300W,
Nominal impedance: 2×8Ω total 4Ω Weight: 120kg (265 lbs)
②Model: BR121 Driver: 1×21", Frequency Band: 32-270Hz,
Sensitivity (1w@1m): 103d8, recommended amplifier power (rms)*: 650W,
Nominal Impedance: 8Ω Weight: 70kg (146 lbs)
③Model: BR218 Driver: 2×18", frequency band: 35-270Hz,
Sensitivity (1w@1m): 104d8, recommended amplifier power (rms)*: 1100W,
Nominal impedance: 2×8Ω total 4Ω Weight: 70kg (152 lbs)
④Model: BR118 Driver: 1×18", Frequency Band: 37-270Hz,
Sensitivity (1w@1m): 103d8, recommended amplifier power (rms)*: 550W,
Nominal Impedance: 8Ω Weight: 38kg (84 lbs)
⑤Model: BR115 Driver: 1×15", Frequency Band: 45-320Hz,
Sensitivity (1w@1m): 103d8, recommended amplifier power (rms)*: 500W,
Nominal Impedance: 8Ω Weight: 33kg (731 lbs)
