　　The Funktion-One system solution is ideal for live music performances, a highly efficient system with much taller speaker systems. Also, I generally don't use much signal processing, usually with many parameters set to default values and very little EQ or compression. I spend a lot of time adjusting speaker placement and sound coverage so that the SPL doesn't exceed 100dB. I prefer the average sound pressure level of 95-97dB. I think this value sounds more comfortable. Many people in the industry have not considered it well enough, and I don't want to hurt the auditory experience of the audience.

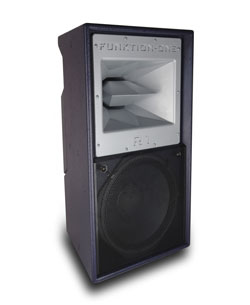

　　Resolution 1

　　Resolution 1 is a further improvement of two-way small volume speaker, Tony Andrews led by 40 years of research and development of high-efficiency tray midrange, the proprietary Funktion One 5 "unit can remove the compression driver, avoiding their inherent Metallic sound and distortion.This driver is matched with ax phase plug and waveguide to get fairly smooth high and mid frequency response as well as coherent and detailed tone.

　　A perfect combination between 5" and 12" drivers with a crossover frequency of 520 Hz. A traditional two-way speaker would be connected to a tweeter compression unit and a 12" or 15" woofer

　　The frequency band of 1-2 khz is selected for the unit, which causes the sound to be unnatural and easy to cause distortion, and Resolution 1 solves this problem. The precise projection and detailed sound of the R 1 make it ideal for high-quality sound reinforcement applications.

　　The trapezoidal design of the cabinet allows it to be used with the optional PX1 external surge-free crossover. Waveguide type drivers can be rotated for horizontal or vertical use.

　　Features:

　　1. Very low distortion rate

　　2. Funktion - One design neodymium magnetic driver

　　3. The horn can be rotated to match the horizontal placement of the speaker

　　4. There is a 35mm socket at the bottom

　　5. There are surface nets available for purchase

　　6. There are PX1 passive frequency dividers available for purchase

　　7. M10 lifting point, there are comprehensive lifting options available for purchase

　　①Driver: 12", frequency band: 25-520Hz,

　　Sensitivity (1w@1m): 102d8, recommended amplifier power (rms)*: 350W,

　　Nominal impedance: 8Ω

　　②Driver: 5", frequency band: 520Hz-above,

　　Sensitivity (1w@1m): 112d8, recommended amplifier power (rms)*: 75W,

　　Nominal impedance: 12Ω

　　Frequency response ±3dB: 65Hz-15kHz

　　Weight: 19kg (45 lbs)

　　Nominal diffusion angle: 40°horizontal X25°vertical

　　Interface: 2 x Speakon NL4
