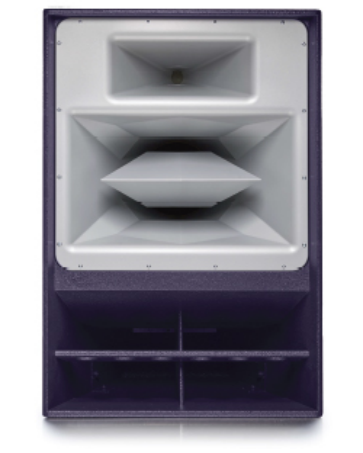

　　FUNKTION ONE--Evo6E

　　The Evolution 6E" mid-bass, Funktion One's signature 1O" midrange and 1.4" compression unit, brings you the world's best Leading level of influence and expressiveness. Evo 6E theoretically has a horizontal nominal coverage angle of 50 ° (actually 40 °)' When using 2 Evo6 E, the coverage angle can smoothly reach 90 °.

　　Evo6 E is perfectly suitable for all music applications and genres, and it is recommended to use F121, F221 or BR221 to match it.

　　The "pure", "powerful" and "natural" EVO series are the latest innovative technology products launched by the British top audio brand Funktion One in the global market, including two models of EV0 6 E for medium and short distance coverage and EV0 7E for long range applications, suitable for Theatres, concerts and bars and other fixed installations and mobile performance venues that require cutting-edge sound quality. They are all based on a highly compact box, which pushes the world-renowned Funktion One legendary moving sound quality and extraordinary performance to a higher level, bringing you an absolute world-leading level of sound expression—a further interpretation It embodies the ultimate sound quality pursuit concept of the British Funktion One audio brand "speaking for music".

　　Features:

　　1. Efficient full-horn loading

　　2. Three-way frequency division

　　3. Funktion One unique driver design

　　4. The overall use of light-weight ferromagnetic steel material

　　5. M10 hanging point

　　6. Optional protective net

　　7. Optional pulley board

　　8. Evo 6EH and Evo6 SH medium and high versions are optional

　　①Driver: 15", frequency band: 50/80-200Hz,

　　Sensitivity (1w@1m): 103d8, recommended amplifier power (rms)*: 400W,

　　Nominal impedance: 8Ω

　　②Driver: 10", frequency band: 200-4kHz

　　Sensitivity (1w@1m): 108d8, recommended amplifier power (rms)*: 250W,

　　Nominal impedance: 16Ω

　　③Driver: 1", frequency band: above 4kHz

　　Sensitivity (1w@1m): 109d8, recommended amplifier power (rms)*: 75W,

　　Nominal impedance: 16Ω

　　Frequency response ±3dB: 55Hz-20kHz

　　Weight: 57kg (108lbs)

　　Nominal diffusion angle: 25°horizontal×20°vertical

　　Interface: 2×Speakon NL8 or EP6
