Resolution 4D Downfill KTV audio Factory

Resolution 4D Downf ILL is with Resolution hanging line array 5 designed.

Project Details

Resolution 4D Downfill is designed for hanging line arrays with Resolution 5. It has a wide vertical coverage and can perfectly cover the first row of seats. Its unique and avant-garde conical cabinet design enables the speakers to be as close as possible to form a consistent wave front, and can make the speaker group have the beauty of a spherical group. Like other Resolution Touring speakers, they are equipped with a full set of hanging parts for hanging between the cabinets.



characteristic:

• Unique appearance speakers and speakers can be as close as possible

•Wide vertical coverage angle

•Two-way dual-amp system

• Full horn loaded design

• Funktion-One design neodymium magnet drive

• Revolutionary design built-in hoisting system

• There are gray or black cloth mesh options



driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

8"

445Hz-5k77Hz

108dB

200W

16Ω

1"

5k55Hz-above

109dB

50W

16Ω

*AES standard

Frequency response ±3dB:

445Hz-18kHz

weight:

20kg(44lbs)

Nominal diffusion angle:

25° horizontal × 50° vertical

interface:

EP6 female socket and an EP6 male plug audio lead

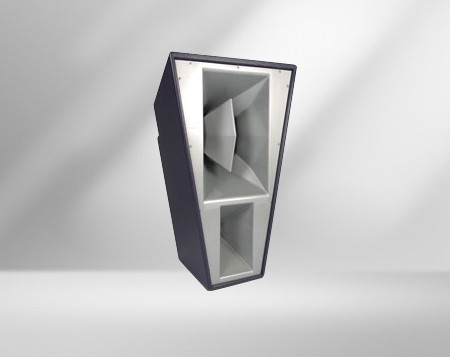

 Resolution 4D Downfill(图1)
