Resolution 2 S8 is designed for high-quality speech sound reinforcement. It uses Funktion-One's most advanced paper plate mid-band processing technology. For human voice broadcasts, it does not have the ear problems of similar products, but provides clear and high language. Intelligible voice.
Resolution 2 S8 is designed for high-quality speech sound reinforcement. It uses Funktion-One's most advanced paper plate mid-band processing technology. For human voice broadcasts, it does not have the ear problems of similar products, but provides clear and high language. Intelligible voice. High-efficiency 8" driver, equipped with axe-shaped phase plug and waveguide, does not need to use a compression driver, the bandwidth is from 250Hz to 8kHz. It does not need to add an equalizer to correct the tone, so Mingli feels that the speaker is talking to the listener at close range , Because the clear message and the sound of the communiqué are far more important than other aspects.

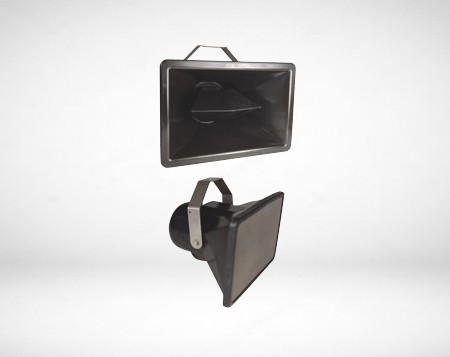

R2S8 is a sturdy and all-weather speaker. The standard configuration includes a stainless steel U-shaped ceiling mount and a surface net.
characteristic:
• Broadband, low distortion
•Small and light
• Funktion-One design 8" drive
•Standard stainless steel U-shaped mounting frame
•Standard stainless steel mesh
• There is a 100V fixed-rate version available for purchase
driver | Frequency band | Sensitivity (1w@1m) | Recommended power amplifier (Rms)* | Nominal impedance |
8" | 250Hz-above | 106dB | 130W | 12Ω |
*AES standard
Frequency response ±3dB: | 250Hz-8kHz |
weight: | 10.5kg (23lbs) |
Nominal diffusion angle: | 50° horizontal × 25° vertical |
interface: | Terminals |
