EVO 7THBar sound company

The EVO  7T H is the EV O in the 7T high -frequency portion. It comes with a 10-inch IF and 1.4-inch compression unit designed for the mid-band .

Project Details

EVO 7TH is the mid and high frequency part of EVO 7T. It comes with a 10-inch IF and 1.4-inch compression unit designed for the mid-band. It is much smaller than EVO 7T in volume, making it very flexible and easy to install, and can be applied to many configurations.

EVO 7TH has a reverse waveguide, which means that the high frequency band can be perfectly mirrored with EVO 7T, so that it can be interactively enhanced to achieve the goal of expanding coverage and increasing audience capacity. EVO 7T, EVO 7TH and EVO 7TL-215 all use the same integrated suspension system for very convenient fixing, adjustment and suspension. EVO 7TH and EVO 7TL-215 are the expansion of the EVO series, which means that the EVO series can deliver accurate sound very comfortably, and has a coverage that can cover 10,000 listeners.



characteristic:

• Full horn loading designed for high performance

• Two-way system

• Driver designed by Funktion One

•Integrate hanging and stacking system

•Using low-weight neodymium magnet material as a whole

• Optional skateboard

• Optional iron mesh cover

driver

Frequency band

Sensitivity

1w@1m

Recommended power amplifier

(rms)*

Nominal impedance

10"

200-4kHz

108dB

250W

16Ω

1.4"

4kHz-above

109dB

75W

32Ω



*AES standard

Frequency response ±3dB:

200Hz-18kHz

weight:

44kg(97lbs)

Nominal diffusion angle:

40° horizontal×20° vertical

interface:

2 × Speakon NL4

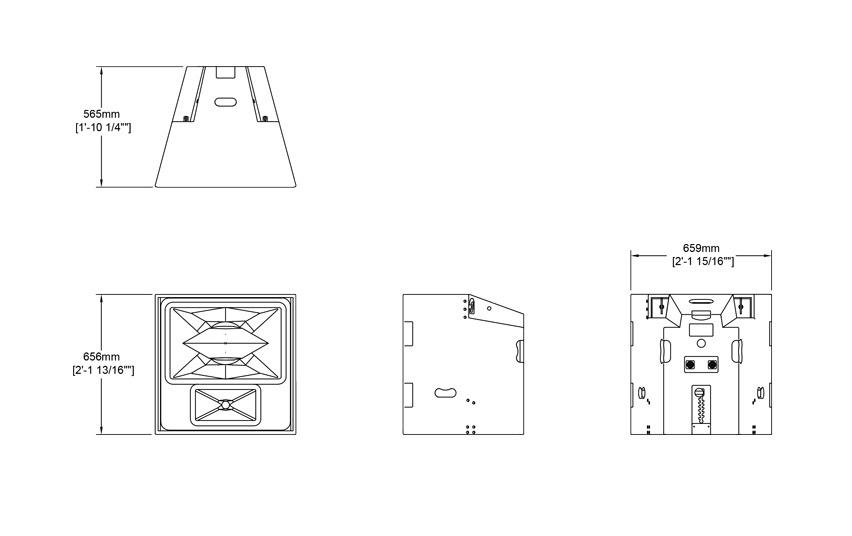

EVO 7TH(图1)
