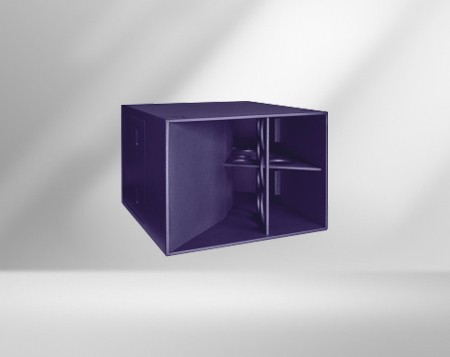

F124 Home ktv audio Vendor

The advent of F124 subwoofer means that Funktion One's bass loading and unit design technology has been upgraded to a whole new level. The double coils and high-density magnetic current precisely control the 24 cone disc body to ensure an ultra-smooth frequency response and extend the lower limit of low frequency to below 30Hz.

Project Details

The advent of F124 subwoofer means that Funktion One's bass loading and unit design technology has been upgraded to a whole new level. The dual coils and high-density magnetic current precisely control the 24" cone disc body to ensure an ultra-smooth frequency response and extend the lower limit of the low frequency to below 30Hz. Benefit from the combination of the speed of the middle and low frequencies and the strength and energy of the deep extension of the ultra-low frequency. With its unique sound design, F124 is the perfect bass match for Funktion One EVO series and other mid- to high-frequency speakers.



characteristic:

• Newly designed dual voice coil 24" unit

• FEA optimized neodymium magnet

•Built-in handle

• Pulleys can be freely purchased

• Low center of gravity design makes handling easier

• Rubber pad positioning and recessed design to facilitate box stacking

• You can choose the ultra-durable black polyurethane coating cabinet or the classic Funktion One deep purple spray cabinet

driver

Sensitivity

(1w@1m)

Recommended power amplifier

(Rms)*

Nominal impedance

24" double coil

107dB

2×750W

2×8Ω

4Ω Total



Frequency response ±3dB:

35Hz-160Hz

27Hz-200Hz

Suggested crossover point:

HPF: 25Hz But24

LPF: 85Hz LR24

*Semi-open independent cabinet

*AES standard

+Please check the official website for the latest crossover settings

weight:

103kg

structure:

18mm birch board

Interface:

Speakon NL4

(One coil is connected to 1+/1-, the other coil is connected to 2+/2-)

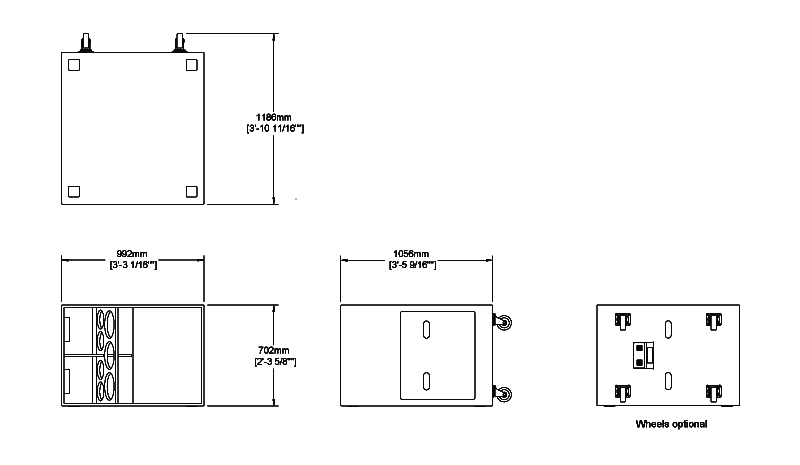

 F124(图1)
