source:Industry News release time:2022-12-22 Hits: Popular:Brand bar audio wholesale
How much is a set of bar speakers Marten Audio
EVO 7TH
EVO 7TH is the middle and high frequency part of EV07T. It has a 10" midrange and 1.4" compression driver designed for the mid-range." It is much smaller in size than the EV0 7T, making it very flexible and easy to install, and can be used in many configurations.
The EV07TH has a reversed waveguide, meaning the mid-high band is perfectly mirrored with the EV07T, allowing it to be reciprocally enhanced. To achieve the goal of expanding coverage and increasing audience capacity. EV07T, EVO7TH and EVOTL-215 all use the same integrated hanging system for very convenient fixing, adjustment and hanging. The EVO 7TH and EV07TL-215 are the expansion of the EVO series, which means that the EVO series can deliver precise sound very comfortably, and have a coverage that can reach 10,000 listeners
characteristics;
1. Full horn loading designed for high performance
2. Two-way system
3. Driver designed by Funktion One
4. Integrate the hanging and stacking system
5. The overall use of low-weight neodymium magnet materials
6. Optional roller skateboard
7. Iron mesh cover is optional
①Driver: 10", frequency band: 200-4kHz,
Sensitivity (1w@1m): 108d8, recommended amplifier power (rms)*: 250W,
Nominal impedance: 16Ω
②Driver: 1.4", frequency band: 4kHz-up
Sensitivity (1w@1m): 109d8, recommended amplifier power (rms)*: 75W,
Nominal impedance: 32Ω
Frequency response ±3dB: 200Hz-18kHz
Weight: 44kg (154lbs)
Nominal diffusion angle: 40°horizontal×20°vertical
Interface: 2 x Speakon NL4

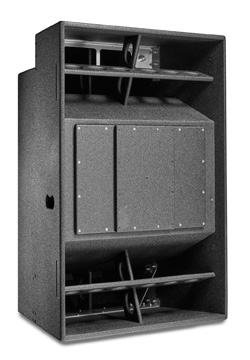

The EV0 7TL- 215 features two EV0 7T horn-loaded 15-inch drivers, which provide mid-bass boost for both flyable and ground-stacked EVO series configurations. The addition of EV07TL-215 and EV07TH to the EV07T series means that the scalability of the EVO series has been greatly improved. EV0 7TH and EV0 7TL- 21!5 are the expansion of EVO series, if the EVO series can be delivered comfortably
Accurate voice" and has the coverage to reach 10,000 listeners.
characteristics;
1. Full horn loading designed for high performance
2. Advanced speaker design
3. Integrate the hanging and stacking system
4. The overall use of low-weight neodymium magnets
5. Optional roller skateboard
6. Optional iron grille
Since its establishment, Shenzhen Mateng Audio Technology Co., Ltd. has an excellent team that has been engaged in the industry for many years, with research and development, design consulting, installation and commissioning, technical training and strong after-sales capabilities. The company is mainly oriented to bars, KTV private rooms, bicycle rooms, campuses and other fields. There are many engineering cases across the country. Professional audio engineering is mainly aimed at bar audio systems, campus conference room audio systems, KTV audio systems and other fields.
