Bar audio recommendation Mateng Audio

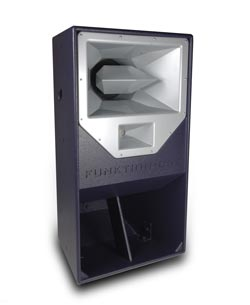

　　FUNKTION ONE---Resolution 2

　　Resolution 2—a full-horn-loaded, surprisingly detailed and compact full-range speaker that uses 15" drivers for low frequencies, 8" midrange, and 1" high-frequency, Funktion—one's horn-loaded and driver technology for clear, detailed analysis and Powerful sound. R2 uniquely combines compactness, high performance and excellent sound, making it suitable for applications where sound quality, sound quality, and volume are very demanding.

　　R2 can be used with Funktion—One subwoofer—such as Infrabass, BR series, F series to get better low frequency response. In addition, R2 also has a horizontal version, the model is R2U, suitable for venues with low ceilings, and its volume is slightly larger than R2.

　　Features:

　　1. Full frequency, can be used alone

　　2. Full horn load design aiming at high efficiency

　　3. Three-way bi-amplifier (medium and high frequency with built-in passive crossover)

　　4. Funktion - One design driver

　　5. Comprehensive hanging and hoisting options

　　6. M 10 lifting point

　　7. Wheel boards and gauze face nets are available for purchase

　　8. There are also R2S8, R2 SH and R 2EH; high/high-medium versions are available for purchase

　　①Driver: 15", frequency band: 28-250Hz,

　　Sensitivity (1w@1m): 103d8, recommended amplifier power (rms)*: 400W,

　　Nominal impedance: 8Ω

　　②Driver: 8", frequency band: 250-6k5Hz

　　Sensitivity (1w@1m): 106d8, recommended amplifier power (rms)*: 200W,

　　Nominal impedance: 12Ω

　　③Driver: 1", frequency band: above 6k5Hz

　　Sensitivity (1w@1m): 107d8, recommended amplifier power (rms)*: 50W,

　　Nominal impedance: 12Ω

　　Frequency response ±3dB: 50Hz-18kHz

　　Weight: 48kg (106 lbs)

　　Nominal diffusion angle: 500°horizontal X25°vertical

　　Interface: 2 x Speakon NL4

　　FUNKTION ONE---Minibass 212

　　Minibass 212 is the continuation of the development of Funktion - One Infrabass technology. It provides smooth and deep mid-low frequency extension. It matches F88 and R1 full-range speakers.

　　The structure of MB212 is a 1 2" 1 6Ω driver designed by two Funktion-One, and then the cabinet is designed in the form of a resonance chamber to provide 6 00 W and an average sensitivity of 104 dB from 40 Hz to 125 Hz. This high-efficiency 80 subwoofer speaker Allowable - one power amplifier channel is enough for multiple speakers.

　　Features:

　　1. New load-type design

　　2.Funktion-One design with dual 1 2" drivers

　　3. Including stainless steel curved mesh

　　4.—Integrated handle

　　5.—Integrated hanging point

　　6. There is also a version with corners for selection

　　Driver 2"×12"

　　Sensitivity (1w@1m) 104dB

　　Recommended amplifier power (rms)*600W nominal impedance 8Ω

　　Frequency response ±3 dB: 35Hz- 125kHz

　　Weight: 48kg (106dB)

　　Construction material: 15mm birch compression board

　　Interface: 2×speakon NL4
