EvoX

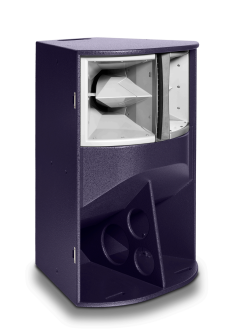

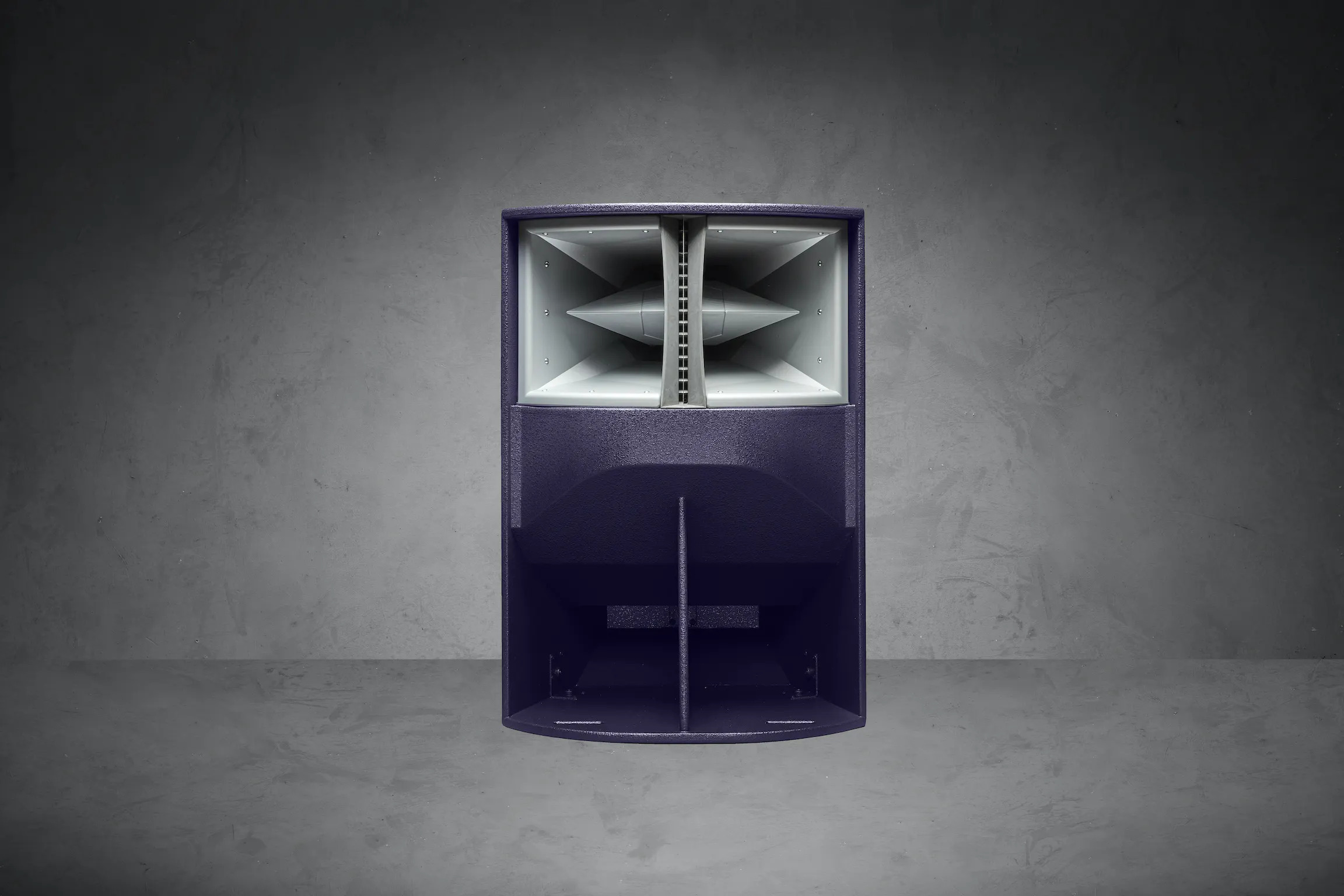

EvoX "Pure", "Powerful" and "Natural" EVO series is the latest innovative technology product launched by the British top audio brand Funktion One in the global market. It is suitable for fixed installations and mobile performances that require cutting-edge sound quality such as theaters, concerts and bars. place. They are all based on a highly compact cabinet, pushing the world-renowned Funktion One’s legendary moving sound quality and extraordinary performance to a higher level, bringing you an absolute world-leading level of sound expression—a further interpretation It embodies the ultimate sound quality pursuit concept of the British Funktion One audio brand "speaking for music".

Following the success of the original Resolution 2 loudspeaker over the past two decades, the EVOX loudspeaker is a significant evolution of the full-range, full-horn-loaded cabinet concept. Using the latest waveguide technology developed by Funktion-one, EVOX provides wider sound field coverage and higher sound pressure level from a smaller and lighter box. Advanced Driver Technology Delivers Higher Sound Resolution Resolution and Detail EvoX's advanced driver technology delivers market-leading resolution and detail. It is the perfect choice for live venues, small club spaces and theaters. Capable of achieving high SPL from a relatively compact enclosure, use as a pair for small live music events or as a four-point small club system. Combine with F-Series or BR-Series subwoofers for added low-frequency power. Shared driver components make the EVO X the perfect fill for the VERO VX touring system as front-of-stage, side-of-stage, side-fill (matching grille and black PU coating optional).

Evo X's advanced driver technology delivers exceptional clarity, resolution and detail. Its 90° horizontal spread makes it an excellent choice for live venues, small clubs and theaters. It is capable of high sound pressure levels from relatively compact loudspeakers and can be deployed as a one or four-point system per side. While Evo X's horizontal dispersion provides even coverage over a wide area, its focused 15° vertical dispersion ensures sound is focused on the audience, minimizing reflections and room excitement. The result is clear and involving in sound.
Utilizing the same equi-diffractive high-frequency waveguide technology as the Vero VX, the Evo X is designed for small to medium-sized live events and installations, finding an optimal audience area at approximately 10m x 10m. It can operate in the 50Hz-18kHz range and combines well with the Funktion-One F series and BR series woofers for added low frequency energy. The wide-bandwidth 8" midrange extends to 5kHz, minimizing stress on the 1" high-frequency driver, while the 15" mid-bass easily handles 50Hz-280Hz. Evo X has been carefully designed and engineered for high SPL and High efficiency, minimizing energy consumption and environmental impact.
The Evo X weighs 47kg, measures 604mm wide, 859mm high and 540mm deep, and features a bespoke wheel plate that supports the curved front of the speaker. It is now available in a variety of colors and finishes through Funktion-One's worldwide network of distributors and dealers.

characteristic:

1. Single cabinet solution with wide coverage angle (horizontal 90°)

2. Full frequency range, high sound pressure level

3. High efficiency and low energy consumption design

4. Small and lightweight (47kg)

5. Three new Funktion-one drive units

6. Wideband Funktion-one midrange (280Hz - 5kHz)

7. New Equal Phase Diffraction High Frequency Waveguide Technology

8. Special transport trolley (wheel plate)

① Driver: 15" Bandwidth: 55-280Hz Sensitivity 102dB(at 2.8V)

Recommended power: 400W Rated impedance: 8Ω

②Driver: 8" Bandwidth: 280- 5kHz Sensitivity 107dB (at 4V)

Recommended power: 200W Rated impedance: 16Ω

③Driver: 1" Bandwidth: 5k-18kHz Sensitivity 109dB (at 4v)

Recommended power: 100W Rated impedance: 16Ω

Frequency response +3dB: 55Hz-18kHz

Weight: 47kg (103lbs) without wheels

Nominal Diffusion Angle: 90" Horizontal x 15* Vertical

Interface: 2 x Speakon NL8
