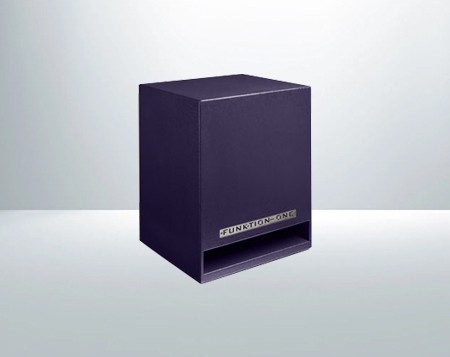

SB 210A is a section of the active subwoofer, rear a right and it matches the full-range speaker jack, this speaker meets Funkt i ON - One demands sound home theater, studio and entertainment venues in the small, SB 210A can Funktion One of the full-range speaker F55, F81 or F101 consisting Yi improvised lightweight PA system.
SB 210A is an active low-frequency speaker with a pair of full-range speaker jacks that match it. This speaker meets the sound quality needs of Funktion-One in home theaters, studios and small entertainment venues. SB 210A It can be combined with Funktion One's full-range speakers F55, F81 or F101 to form a simple and lightweight sound reinforcement system.
SB 210A enables users to experience the ultimate sound quality of Funktion One in a relatively small environment without having to purchase a full range of speakers, low frequency speakers, power amplifiers, and processors. Now, users who have experienced the high-quality sound quality of the Funktion One large-scale sound reinforcement system can already install this home Hi-Fi-level system in their private places or small events, such as gallery exhibitions and parties with about 100 people. Since the conversion rate between power and sound pressure output in Funktion One speakers is very high, such a compact system can bring extremely high sound quality.
Its stereo input plug adopts XLR or straight jack. SB 210A can set three frequency division points, respectively 100Hz, 125Hz or 150Hz. It has independent level control bass and satellite speakers, and the bass output has a phase switch button. The power amplifier is designed according to the characteristics of the Funktion One unit and optimized. The SB 210A and supporting speakers will be released in limited quantities.
characteristic:
driver: | 2×10 " |
Sensitivity (1w@1m): | 105dB |
Suggested amplifier power (rms): | 400W |
Nominal impedance: | 4Ω |
*AES standard
Power (rms): | Bass 500W 2 × supporting audio @150W |
Voltage configuration: | 230Vac/115Vac |
Main connection: | IEC |
Current total harmonic distortion (at full power): | Less than 1% |
Frequency response ±3dB: | 55Hz-150Hz |
Weight (including power amplifier): | 43kg(95lbs) |
Box structure: | 15mm birch board |
Input connector: | 2×XLR/6.35mm straight plug |
Output connection port: | 2 × Speakon NL4 |
